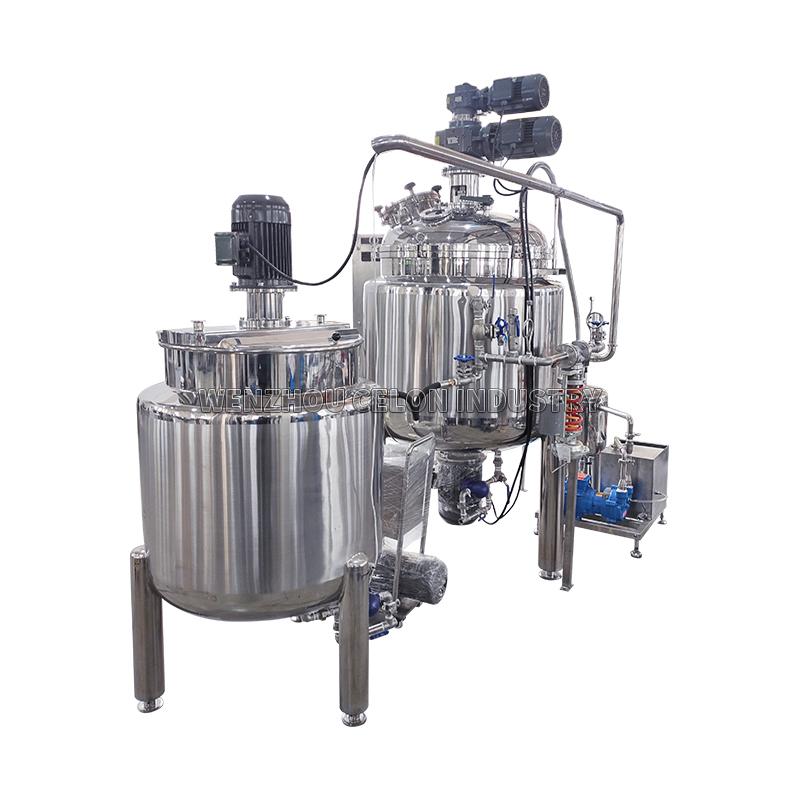

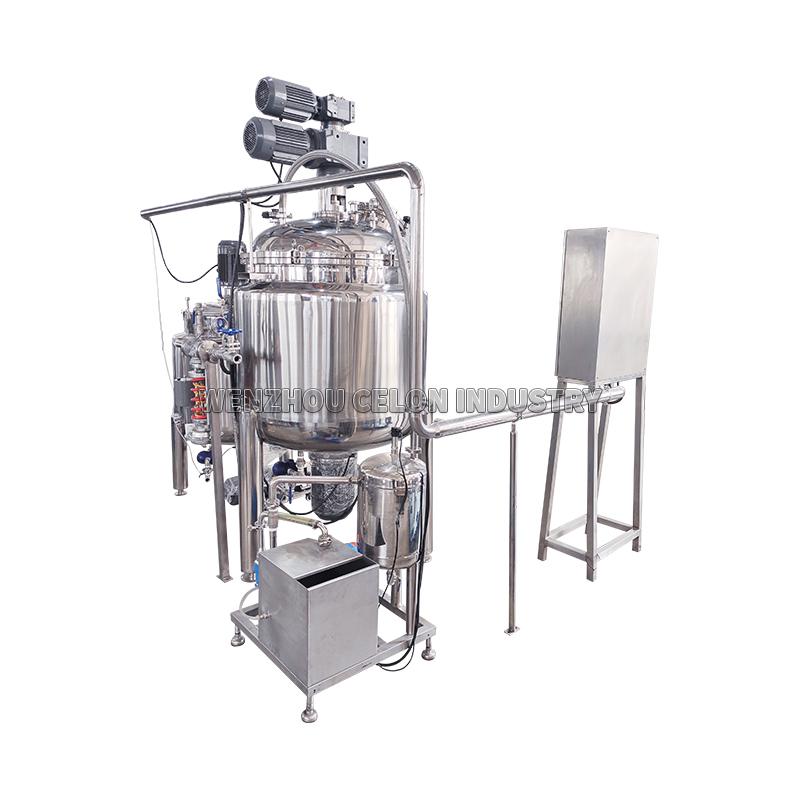

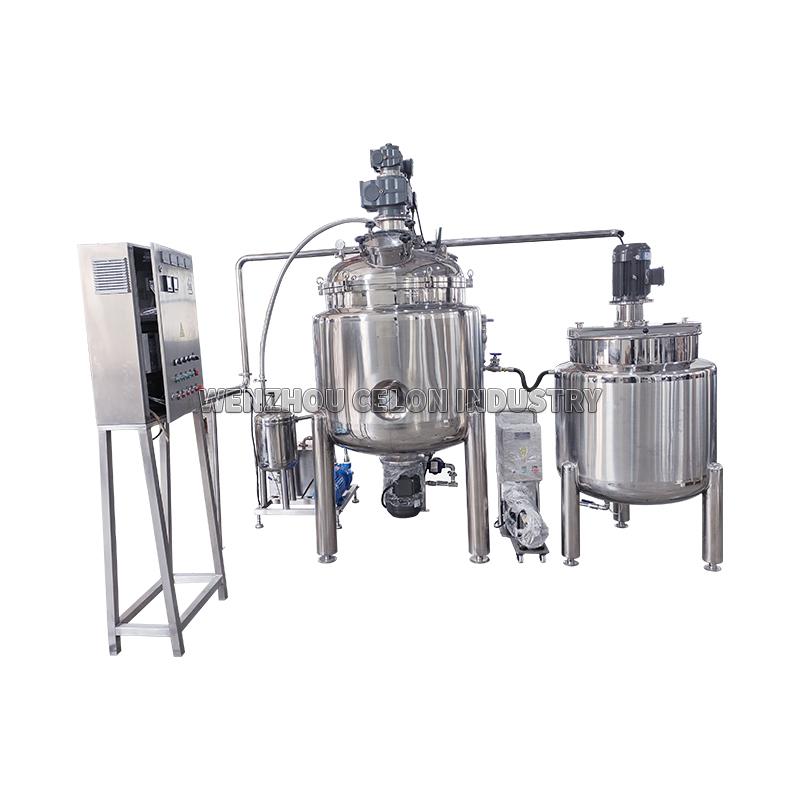

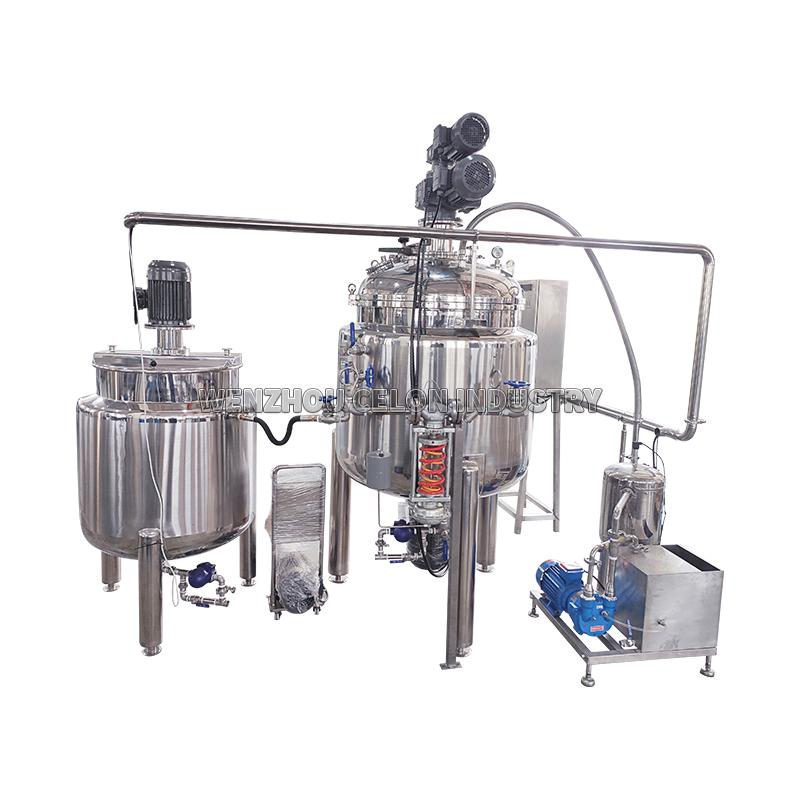

Celon 100L 200L Homogenizer Mixer Vacuum Machine 300kg Size Emulsifying Food Grade tank Mixing with Rotary Lobe Pump
Optional Heating device:
1)Electric heating: the interlayer is provided with electric heating rods, heating of the liquid indirect through heat transfer of a water bath;
2)Steam heating: pour hot steam into jacket, then heat energy to heat the material in the tank;
3)Gas heating: single layer direct heating material in the tank or indirect heating with jacket and isolation layer.
Optional Temperature control:
Using thermocouple to measure the temperature and connected with temperature controller to control the temperature, and also can adjust the temperature of material in tank .
Optional agitator:
Paddle, frame, scraper, disc, anchor, propeller, vertical ribbon mixer, conical ribbon mixer etc avaible. Top or bottom mixer.
Contact us with any needs, we will provide you with a satisfactory solution.
Specification
| Capacity | 50L,100L,200L,300L,500L,600L,1000L～5000L etc. |
| Heating methods | Electric or steam or gas heating |
| Machine Name | Celon 100L 200L Homogenizer Mixer Vacuum Machine 300kg Size Emulsifying Food Grade tank Mixing with Rotary Lobe Pump (we can customize all machines as per your requirements) |
| Temperature control | Temperature probe,temperature controller |
| Surface | inner surface mirror polished,Roughness Ra≤0.4 micron,outer surface matte polished |
| Tank cover | flat cover with double open lids,or sealed shell cover,easy for cleaning |
| tankbottom structure | by spinning into the R angle,weldedwithtank body,no dead angle after polishing |
| Jacket fom | full jacket,used toput the heat transfer oil or water,or mileror coil jacket |
| Insulation material | filled with PU foam,to maintain the temperature difference with the outside |
| Tank body surface | mirror polished or 2B primary color matte or 2B matte surface matte treatment. |
| Stiming speed | 15~120r/min(constant speed)2800rpm(2pole motor),300rpm,200rpm,100rpm frame type,anchor type,paddle type,turbine type,high shear mixer etc |
| Foot fom | adjustable round tube or hanging ear type.Or with caster. |
| Equipment configuration | electrical control panel,temperature controller,material import and export,oil inlet and outlet,vent (Oil spill port)and so on |
| Material | Stainless Steel SS304 or SS316L |
Structure characteristics:
Made of single-layer stainless steel structure.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
Configuration of tank:
Quick open manhole.
Various types of CIP cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly
Thermometer (According to customer requirements ).
Ladder (According to customer requirements).
Paddle blender.
Liquid level meter and lever controller (According to customer requirements).
Eddy-proof board.
Customized and Non-standard products also welcomed.
Customization
We can make many kinds of stainless steel tanks as per customer's needs.the tank can be heated by electric oe steam or gas,it can also install one agitator or two or three agitators.So just tell us your needs,we can do it for you!
Advantages of electric heating stirring tank
*The electric heating stirring tank is of an upper open-type structure.
*It has the functions of automatic temperature control, heat preservation and stirring.
*Fast heat transfer, large temperature difference, convenient cleaning and other advantages.
*Widely used in food (milk) products, beverages, grease, pigment and other industries as heating, mixing or sterilization treatment.
*Suitable for no steam heat source units and scientific research institutions of small, pilot use.
*And according to the process needs to use a fully enclosed structure.
Gas heating Flat cover
We can also design single layer without jacket or without agitator
