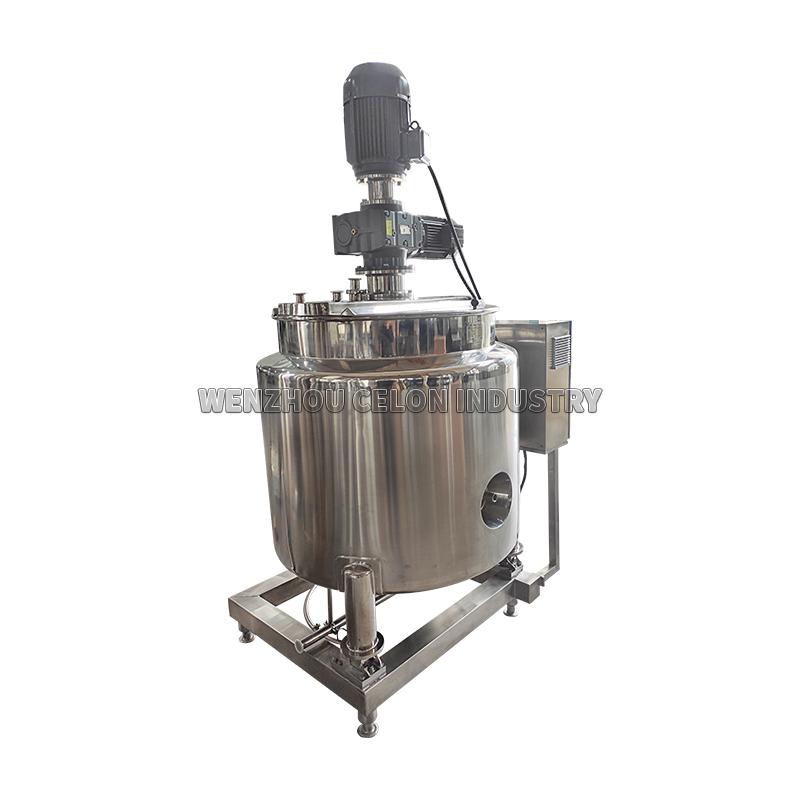

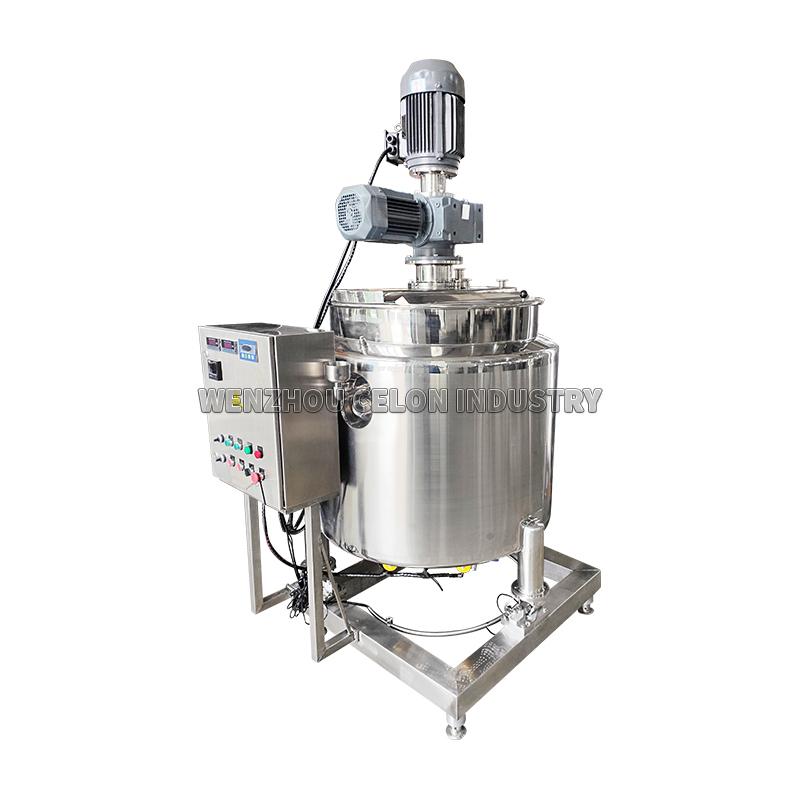

Celon Best Price Electric Heating Stainless Steel Mixing Tanks Perfume Maker Homogenizer Mixer Cosmetic Perfume Mixing Machine

It is widely used in dairy industry, food industry, beverage and other industrial sectors, as heating, cooling, heat preservation, anti-corrosive, anti-corrosive, strong production capacity, cooling, insulation, sterilization treatment or storage of slurry must be stainless steel cans, especially for pasteurization of milk and insulation, ice cream production line is the necessary equipment.

GET A QUOTE RETURN

Product Description
Main technical parameters and function:
Capacity:
50L, 100L, 200L, 300L, 500L, 600L, 1000L～ 5000L etc.
Heating methods:
Electric heated
Insert the electric heating rods into jacket, and uniform heating and no cooling zone. Pour heat conducting oil or water into
jacket as heating medium, they produce heat energy to heat the material in the tank.
Heating temperature of material in tank:
≤100 Celsius ;
Heating time of material in tank: 30min～90min(according to process requirements)
Temperature control:
Using thermocouple to measure the temperature and connected with temperature controller to control the temperature, and also can
adjust the temperature of material in tank .
Surface:
inner surface mirror polished, Roughness Ra ≤ 0.4 micron
Tank cover:
flat cover with double open lids, easy for cleaning, Inner and outside polished (Roughness Ra ≤ 0.4 micron).
Inner tank bottom structure:
by spinning into the R angle, welded with tank body, no dead angle after polishing, without retention when discharging.
Jacket form:
full jacket, used to put the heat transfer oil or water, to achieve the best temperature and cooling purposes when working.
Insulation material:
filled with PU foam, to maintain the temperature difference with the outside, so that can keep warm and insulation.
Tank body surface treatment:
mirror polished or 2B primary color matte or 2B matte surface matte treatment.
Mixing device:
top center of the mixing, reducer output shaft and stirring shaft with a loose connection, easy disassembly and cleaning.
Stirring speed:
15 ~ 120r / min (constant speed);
stirring form: frame type, anchor type, blade type, turbine type etc (according to process requirements).
Foot form:
adjustable round tube or hanging ear type.
Equipment configuration:
electrical control panel, temperature controller, material import and export, media import and export (oil inlet and outlet port),
vent (Oil spill port) and so on.
Material:
inner tank body SUS304 or SUS316L; jacket Q235-B or SUS304; external protection shell SUS304.
Connect:
Each inlet and outlet pipe opening process and welding place of inner tank body adopt flanging process arc transition, smooth and
easy to clean without dead Angle, beautiful appearance
Detailed Images

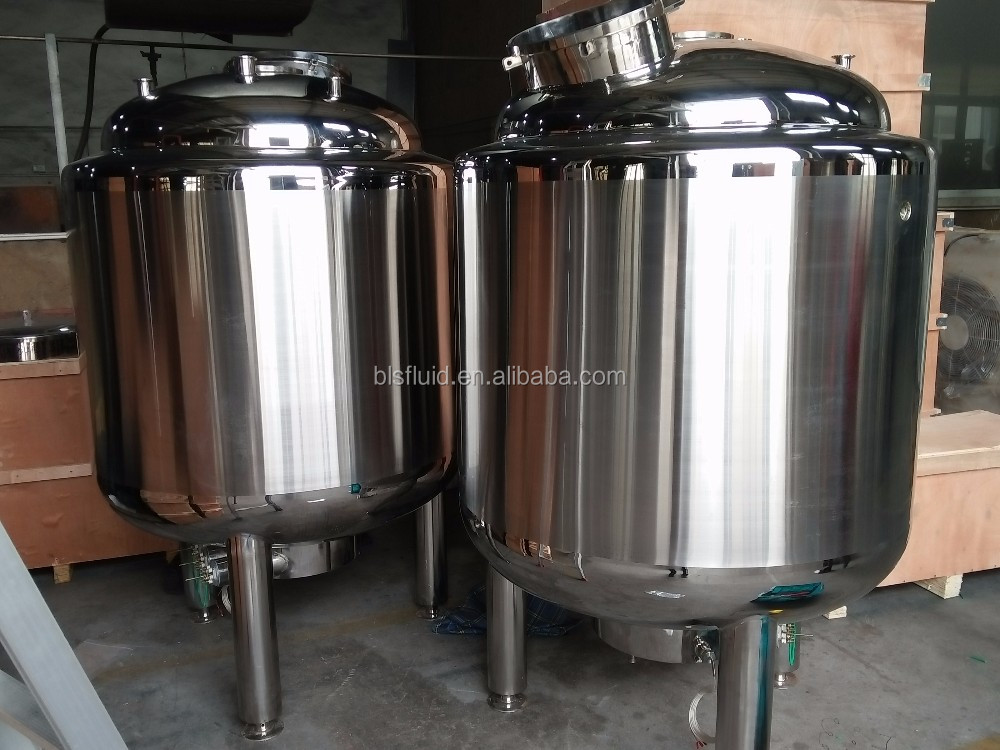

Quality stainless steel

Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.


Motor device

1. Pure copper motor: low noise, stable dynamic, sustainable work.

2. Dust proof engine base: inside stainless steel bearing, with dust cover to avoid dust and grease dirt into tank.

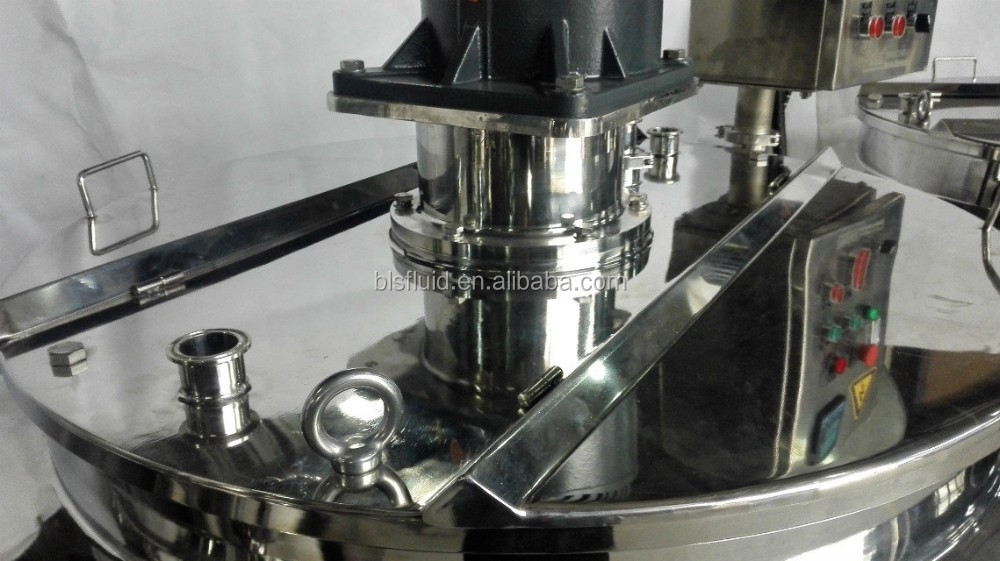

Flat cover /Shell cover

1. Flat cover with double open lids /Shell cover with man hole


2. Creative handle, quick to open, convenient for production

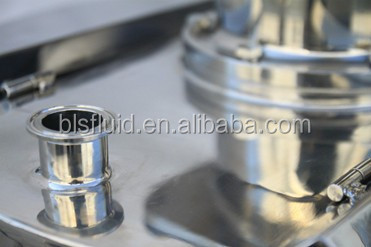

Inlet port and outlet port

1. Available port connection: Clamp, Thread Butt weld, Flange etc.

2. Flange process arc transition smooth, easy to clean no dead ends, beautiful appearance.

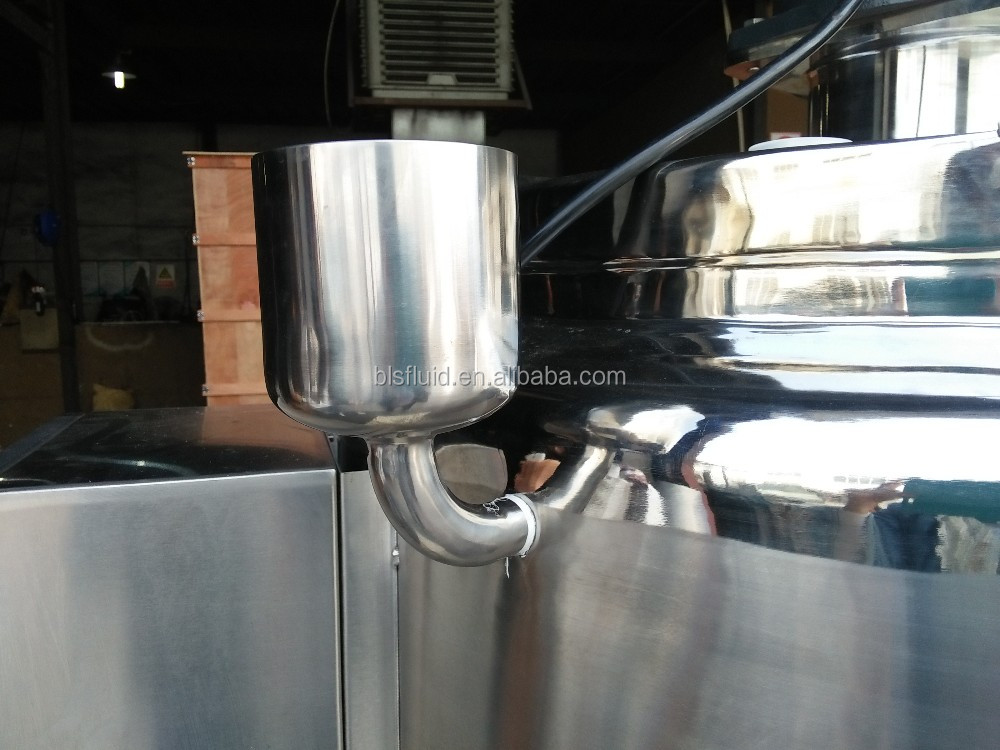

Full Stainless steel small oil cup

be provided for filling Conduction oil, easy use and difficult outflow.

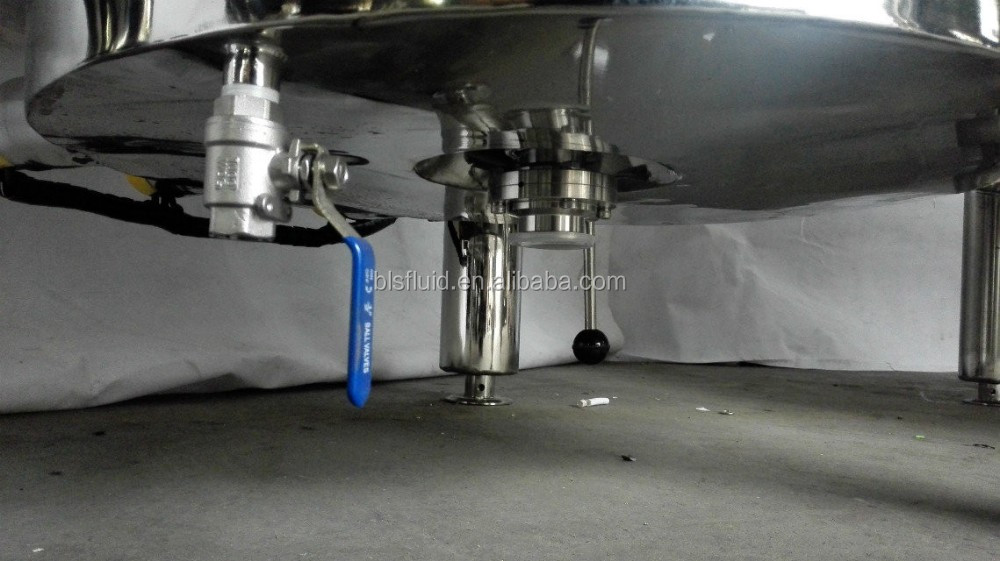

Drain valve

    Ball valve, can get rid of extra water inside interlining


Discharge port

    direct discharge port on the bottom connected with clamped discharge valve

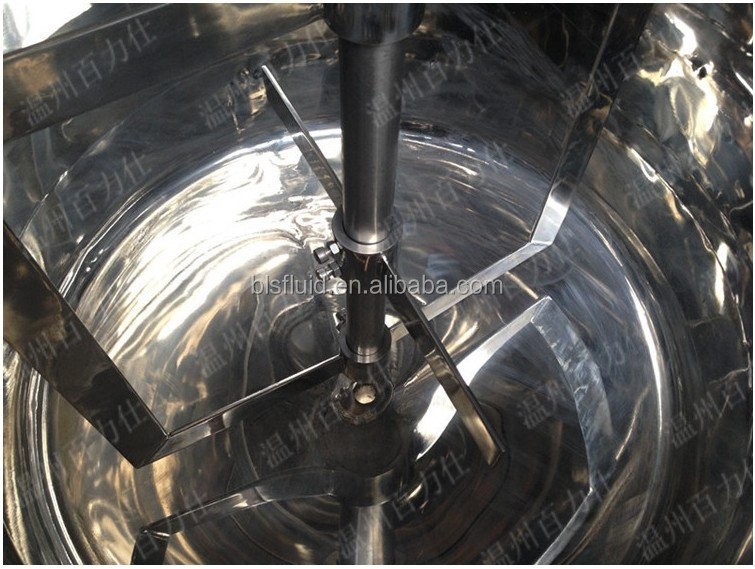

SS agitator

1. Rotation speed can be constant speed, also can be equipped with VFD according to real work condition.

2. Agitator can be frame mixer, paddle, scattered disk, scraper, ribbon etc.


Temperature control

Using thermocouple to measure the temperature and connected with temperature controller to control the temperature, and also can adjust the temperature of material in tank .

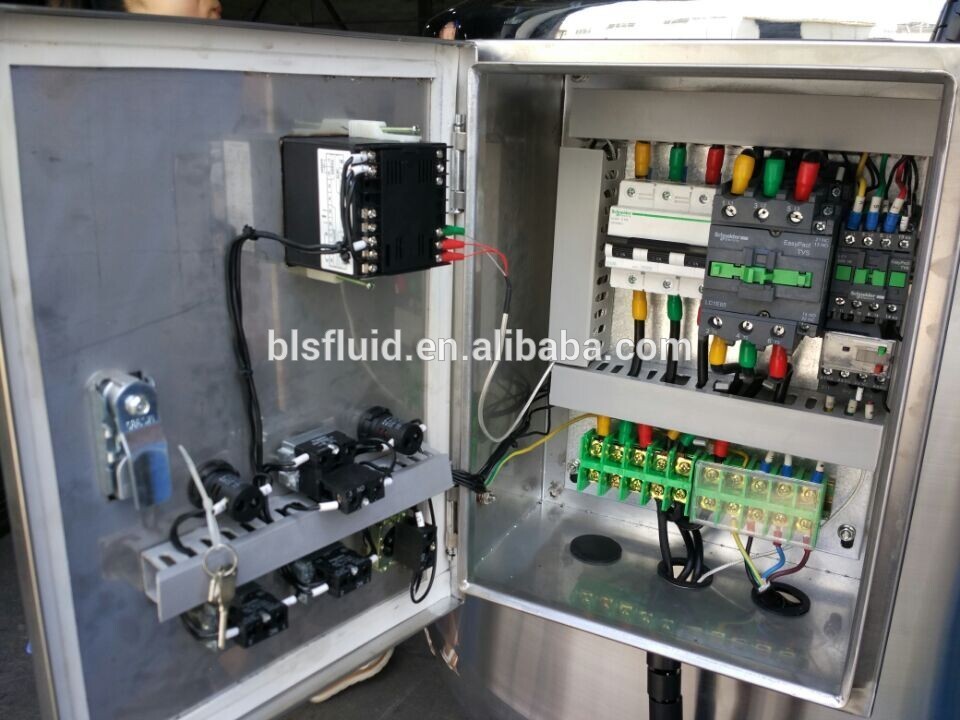

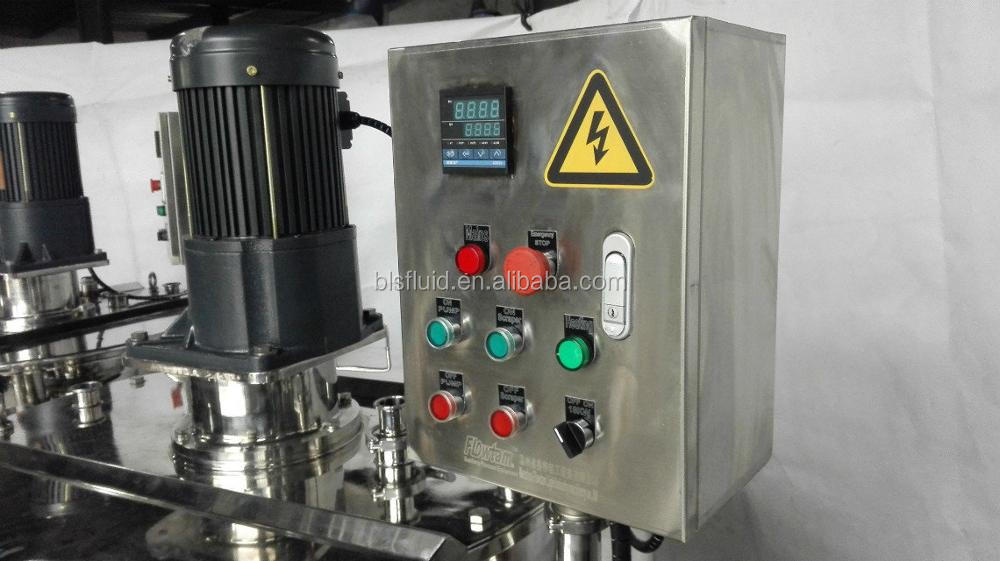

Electric control box:

1. intelligent temperature controller, SS304 box

2. PT100 thermal resistance

3. Germany Schneider Electric Components

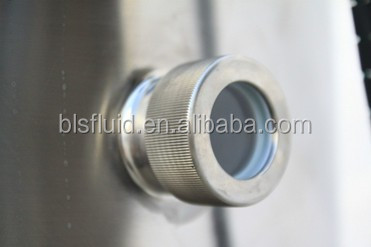

Sight glass:

tempered glass material, threaded connection form.

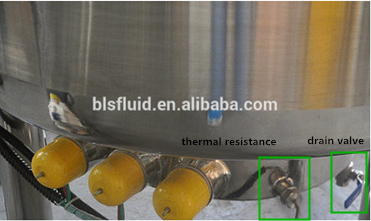

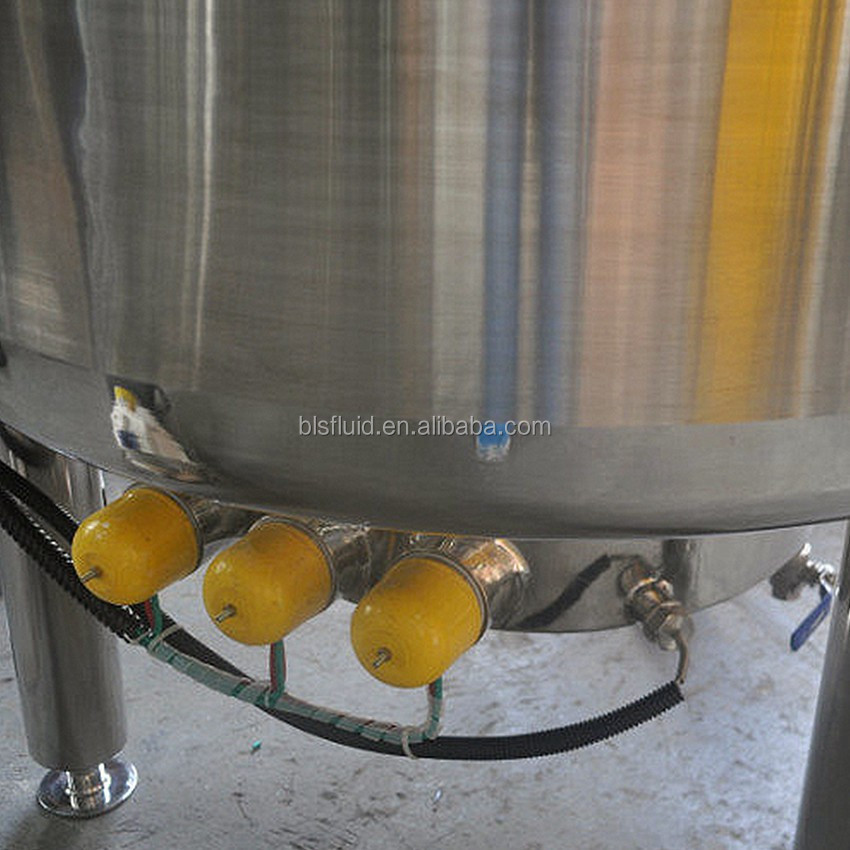

Heating device : Electric heating


1. the interlayer is provided with electric heating rods.


2. heating of the liquid indirect through heat transfer of a water bath;

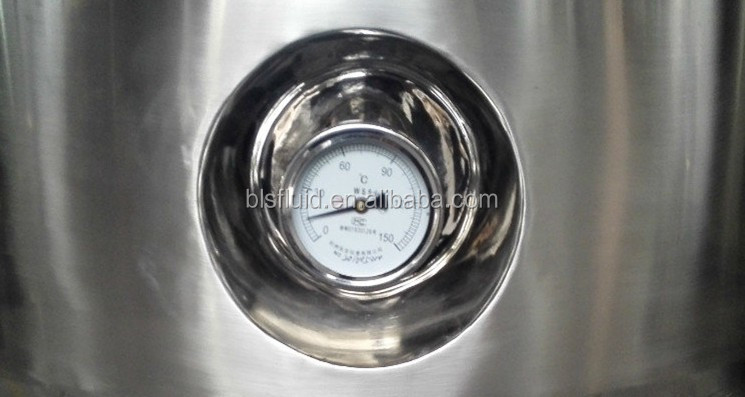

Disc thermometer:

show the inside tank feeding material temperature


Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.


Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
