Celon G Series Single Screw Pump Eccentric Screw Pump Food Grade Stainless Steel Screw Pump For Molasses
Product Description
Wide Application:
Single screw pump is used in all fields widely to feel kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed.
Feeding Medium
This product is applicable for feeding medium which has following properties:
High solid content(diameter of the biggest particle is 50mm)or no solid content
Medium with all viscosities(1mPas~3,000,000mPas)
Medium that is easy to be generated and swelled
Shearing sensitive medium
Medium with/without self lubrication
Erosive medium(PH=0~14)
Adhesive medium
Toxicity hazard medium
Technical Parameters
| screw pump | (mm) | (r/min) | (m³/h) | (kw) |
| Model | Diameter | Speed | Flow | Power |
| G10-1 | 20 | 1400 | 0.5 | 0.37 |
| G15-1 | 25 | 960 | 1 | 0.55 |
| G20-1 | 32 | 960 | 1.5 | 0.75 |
| G25-1 | 32 | 960 | 2 | 1.1 |
| G30-1 | 40 | 960 | 3 | 1.5 |
| G35-1 | 50 | 960 | 5 | 2.2 |
| G40-1 | 50 | 960 | 7 | 3 |
| 50 | 720 | 5.5 | 2.2 | |
| G45-1 | 50 | 960 | 9 | 4 |
| 50 | 720 | 7 | 3 | |
| G50-1 | 65 | 960 | 13 | 5.5 |
| 65 | 720 | 10 | 4 | |
| G55-1 | 65 | 960 | 18 | 7.5 |
| 65 | 720 | 13 | 5.5 | |
| G65-1 | 80 | 720 | 30 | 11 |
| G86-1 | 100 | 720 | 60 | 15 |

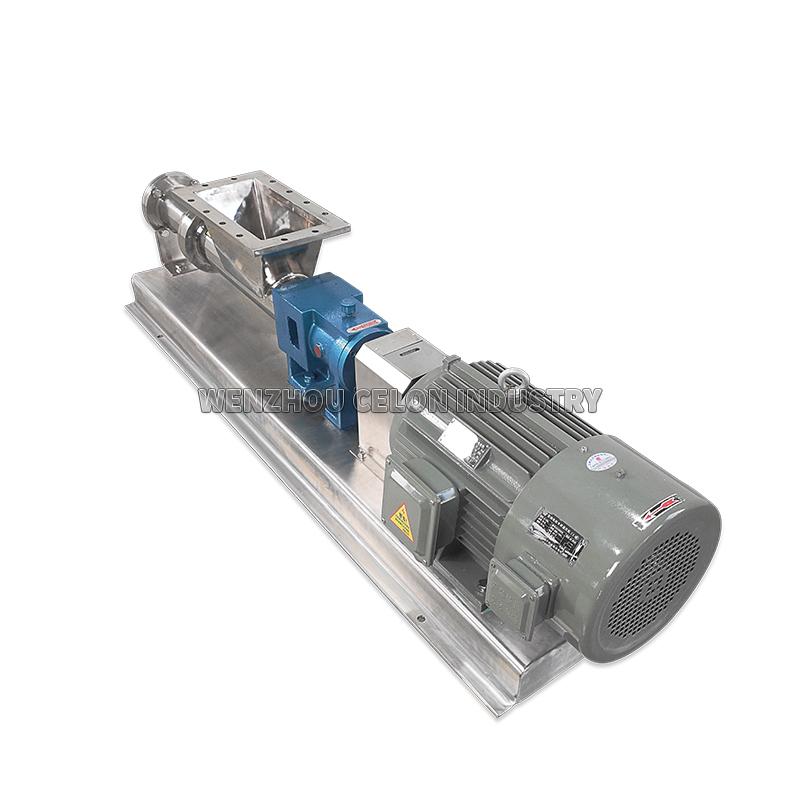

Product Picture
Single screw pump is used in all fields widely to feel kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed.
Q: How about payment term, payment safety and delivery time?
A: We accept 40% deposit, balance before shipment. And Irrevocable L/C at sight.Delivery time is 7 to 30 days. It is according to order quantity.
Q: How could we confirm the products?
A: Our professional engineers will follow up all the designs and ajustments according to your requirement.OEM and ODM available.
Q: What services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Cardl,Western Union,Alipay;
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: What's your MOQ?
A: 1 set.
