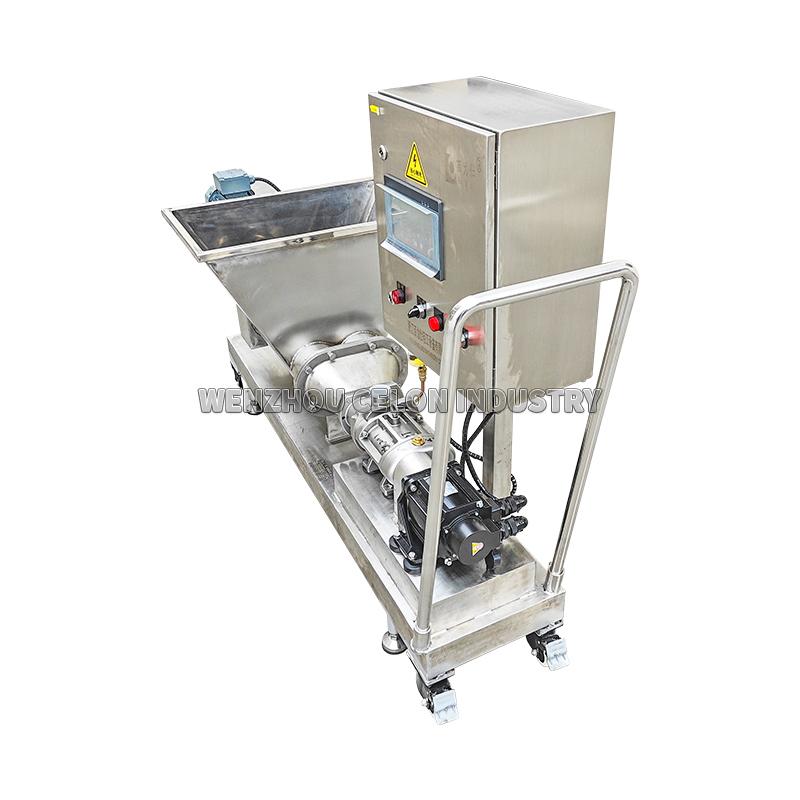

Celon Food Grade Stainless Steel Tomato Paste Pudding Pump Twin Screw Pump for Transferring Viscosity Sauce with Feeder
Twin screw pump is mainly for delivery of high viscosity liquids, and belongs to positive displacement pump range. is designs for sanitary use in food,dairy, beverage etc industries.
All the sanitary, reliability and rigidity meets the requirements of these industries. Standard design make all the spare parts could be displaced among same model pumps.
Driven forms.
1.Motor + Fix velocity ratio reduction gear :
This form is simple, rotor speed is constant. So that flow is not adjustable . If Frequency transformer added, speed adjustment can be achieved.
2.Frequency Converter + motor :
speed automatic adjustment can be realized in this way, is a free flow adjustments. The advantage is a higher degree of automation and easy to operate. Inverter drawback is the higher prices, smaller low-speed torque.
Standard product configuration:
Material: parts in contact with the material all 316 stainless steel
Machine seal: single machine seal (oil cup)/ double machine seal (carbide + silicon carbide)
Motor: ABB avaible
Electric cabinet: 304 stainless steel control box, schneider electric components, with frequency converter avaible
Double spiral pump adopts all stainless steel sanitary standard, all parts in contact with materials adopt high grade and high quality 316 stainless steel transmission, and some parts adopt 304 stainless steel material, which can provide material composition certificate and material report
Large import, ensure that the material more quickly and smoothly into the pump chamber, at the same time to reduce the material cutting and extrusion, suitable for materials such as large grain fruit "vegetable paste, bean paste, meat puree, fish puree, etc
Can be equipped with a variety of heating jackets, heating temperatures up to 200 ° C (suitable for materials such as chocolate sauce that require material temperature) · Working pressure: up to 25 bar Speed: up to 3600RPM (can be idling) Viscosity: 100000cST
Single seal + oil cup (temperature s60℃)
Note: open the oil cup valve before starting the machine. When the liquid (oil, cooking oil, pure water) in the oil cup is less than 1/3, it should be added in time
"Double machine seal: cemented carbide + silicon carbide (60C-200 C)"
Note: Cooling water must be connected at boot
Self-contained cooling system, free of cooling water, easy to operate, cost saving
With a cart, easy to move, a pump can be used as several, greatly reducing production costs
Can be equipped with stainless steel auger, suitable for poor flow of materials, such as meat, large particles of fruits and vegetables, bean paste and other materials.
APPLICATION
The main advantage of the L&B Twin Screw Pump is its capacity to pump a great variety of viscous liquids, from1 1mPa.s up to 100000mPa.s
Furthermore, it is capable of pumping liquid products that require very careful handling and liquids that contain soft solids the causing only a minimum degradation of same.
Q: How about payment term, payment safety and delivery time?
A: We accept 40% deposit, balance before shipment. And Irrevocable L/C at sight.Delivery time is 7 to 30 days. It is according to order quantity.
Q: How could we confirm the products?
A: Our professional engineers will follow up all the designs and ajustments according to your requirement.OEM and ODM available.
Q: What services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Cardl,Western Union,Alipay;
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: What's your MOQ?
A: 1 set.
